XAMPLIFIER

Xamplifier-T35

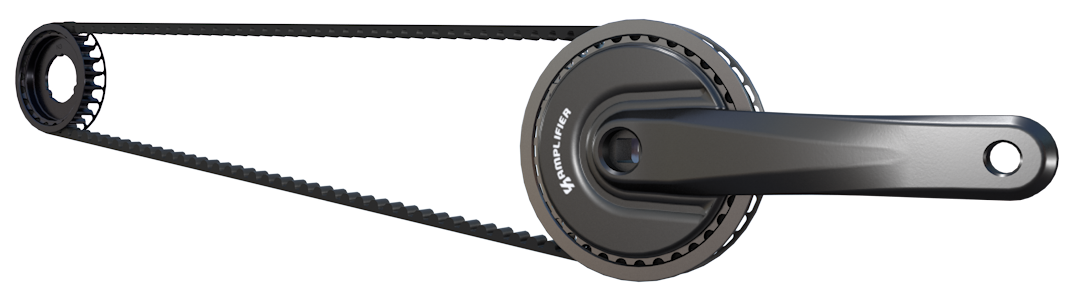

xamplifier-35T-22T

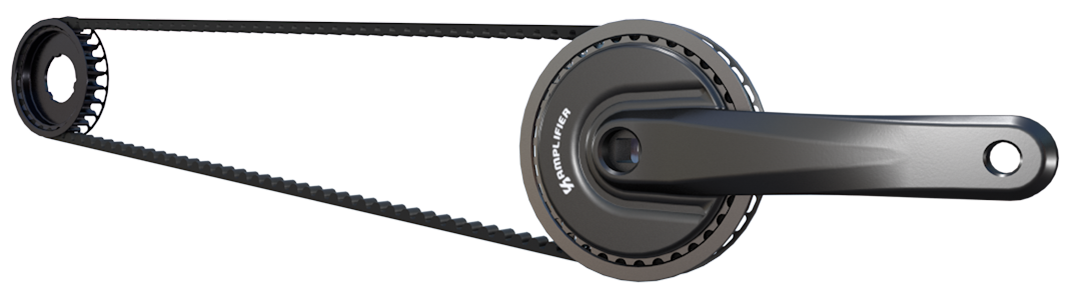

xamplifier-35T-24T

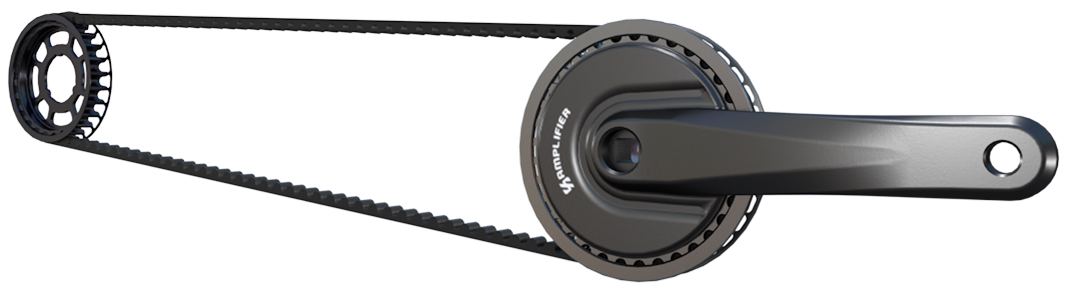

xamplifier-35T-26T

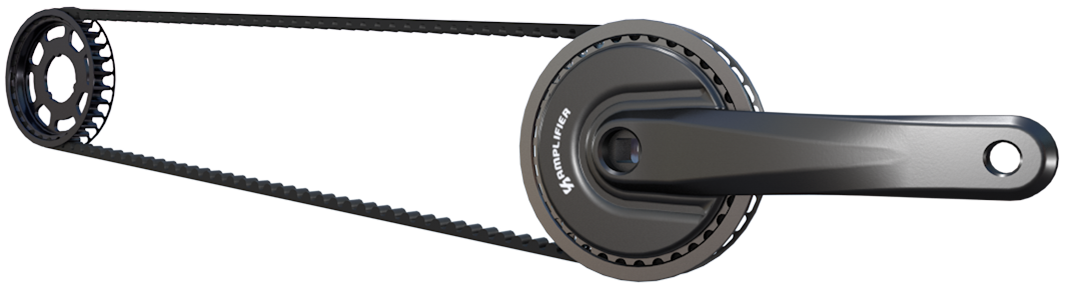

xamplifier-35T-28T

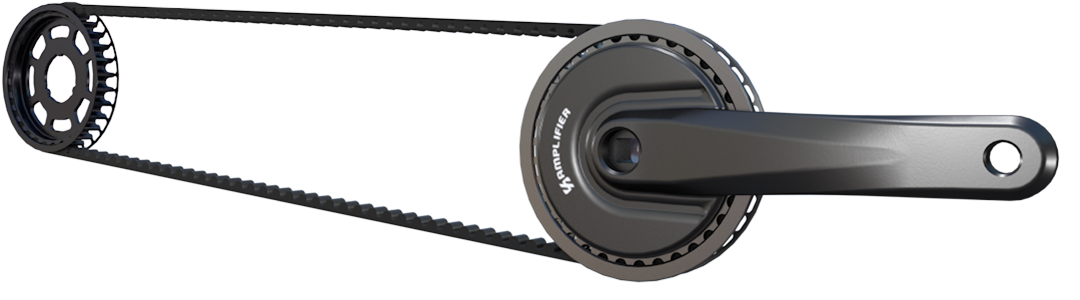

xamplifier-35T-30T

Front Sprocket(T)	Rear Sprocket(T)	Xamplifier Internal Ratio	Standard Ratio	Total System Ratio
35T	22T	1.91	1.59	3.04
35T	24T	1.91	1.46	2.79
35T	26T	1.91	1.35	2.57
35T	28T	1.91	1.25	2.39
35T	30T	1.91	1.17	2.23

Xamplifier-T38

xamplifier_38T-22T

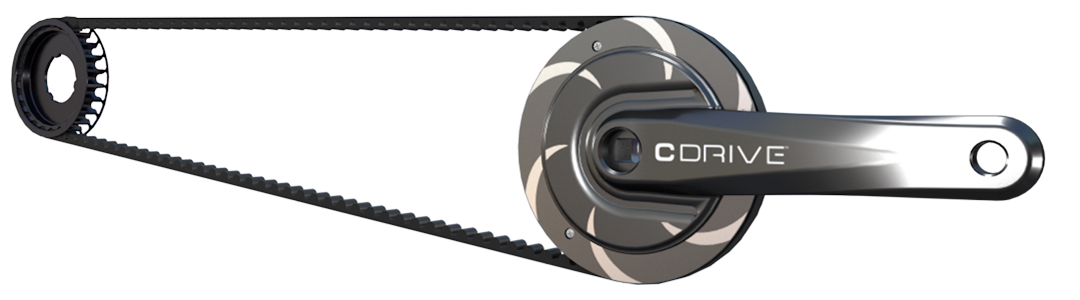

xamplifier_38T-24T

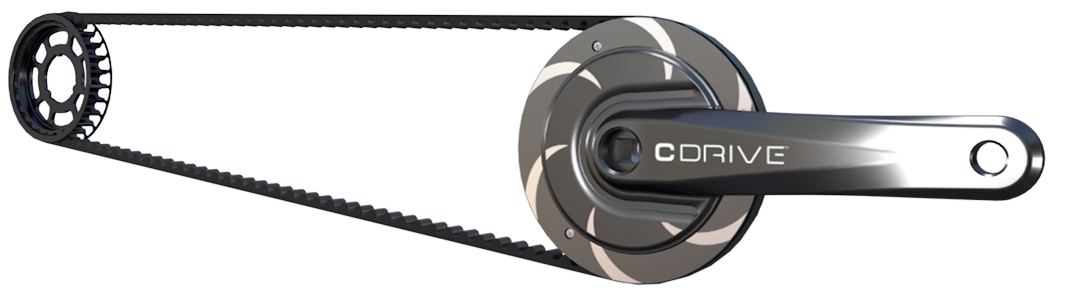

xamplifier_38T-26T

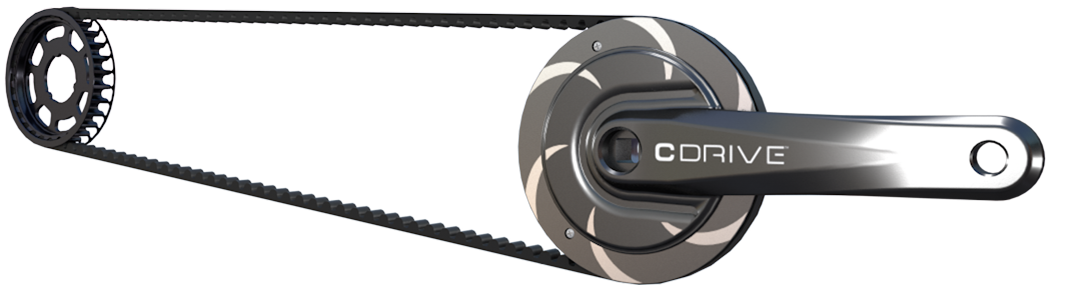

xamplifier_38T-28T

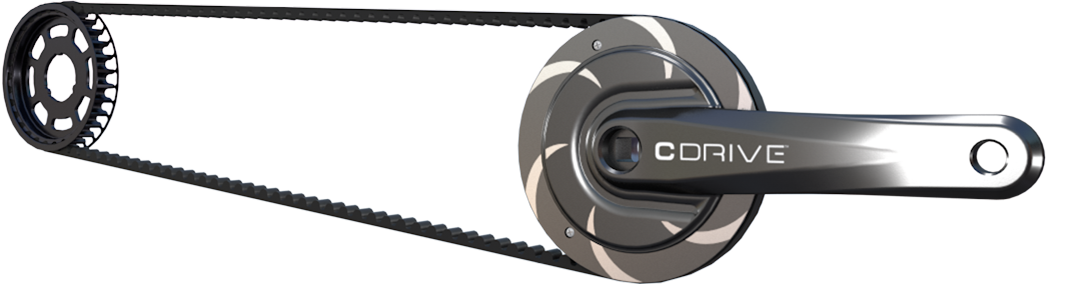

xamplifier_38T-30T

Front Sprocket(T)	Rear Sprocket(T)	Xamplifier Internal Ratio	Standard Ratio	Total System Ratio
38T	22T	2.6	1.73	4.49
38T	24T	2.6	1.58	4.12
38T	26T	2.6	1.46	3.80
38T	28T	2.6	1.36	3.53
38T	30T	2.6	1.27	3.29

Xamplifier-T46

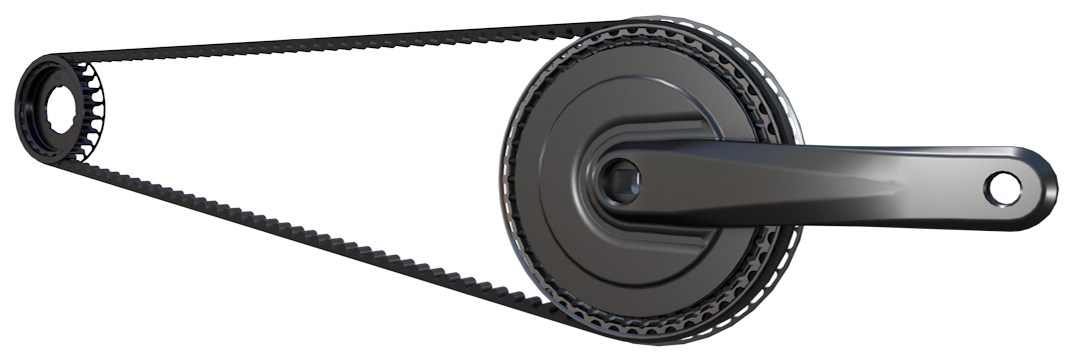

xamplifier_46T-22T

xamplifier_46T-24T

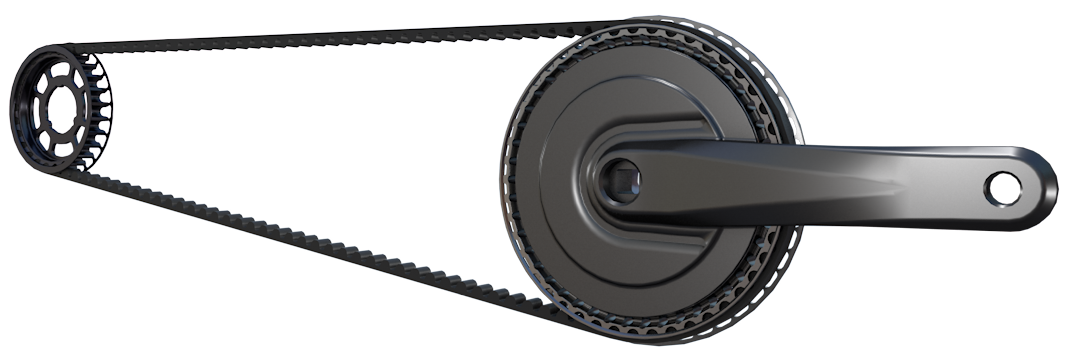

xamplifier_46T-26T

xamplifier_46T-28T

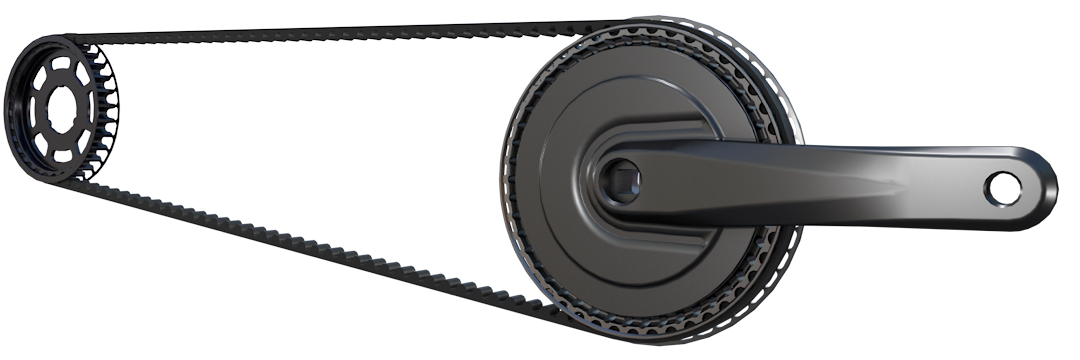

xamplifier_46T-30T

Front Sprocket(T)	Rear Sprocket(T)	Xamplifier Internal Ratio	Standard Ratio	Total System Ratio
46T	22T	2.71	2.09	5.67
46T	24T	2.71	1.92	5.19
46T	26T	2.71	1.77	4.79
46T	28T	2.71	1.64	4.45
46T	30T	2.71	1.53	4.16

▶

Chainstay Calculator

	RC/Belt

	Front Chainring (Teeth)

	Rear Cog (Teeth)

* Chainstay (mm)

Belt Length

Gear Ratio

Front Sprocket

Rear Sprocket

Chainstay Length

Belt Length

> Download Chainstay Calculator.xlsx
